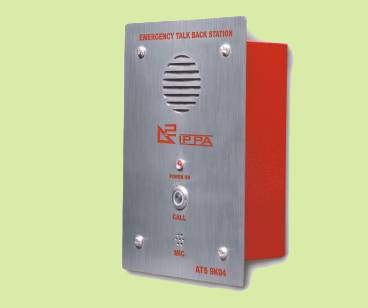

IP based Talkback Speaker (ATS 9K04- Gate intercom station)
portfolio img
Brochures
Download Brochures pdf
portfolio img

Cathedral of Brasilia

BuildingModern
Overview

This SIP-enabled VoIP Intercom station is a Power-over- Ethernet & Voice-over-IP (VoIP) two way communication device that easily connects into existing LAN with a single cable connection

Wall/flush Mounting.

PoE 802.3af enabled.

Handsfree full-duplex voice operation.

Network web management.

Network adjustable speaker volume & microphone sensitivity Network downloadable firmware.

Ethernet /F 10. 100 Mbps

Protocol SIP RFC 3261 Compatibl

Power I/P PoE 802.3af compliant or +5v at 800 mA.

Works with A Square make IP-PA controller unit(ATS 9K11/C).

Dimensions: 200 mm x 140 mm x 70 mm (HxWxD)

Boxed weight 1.5 Kg

LED ring illuminated call button helps in case of power failure during emergency situation
